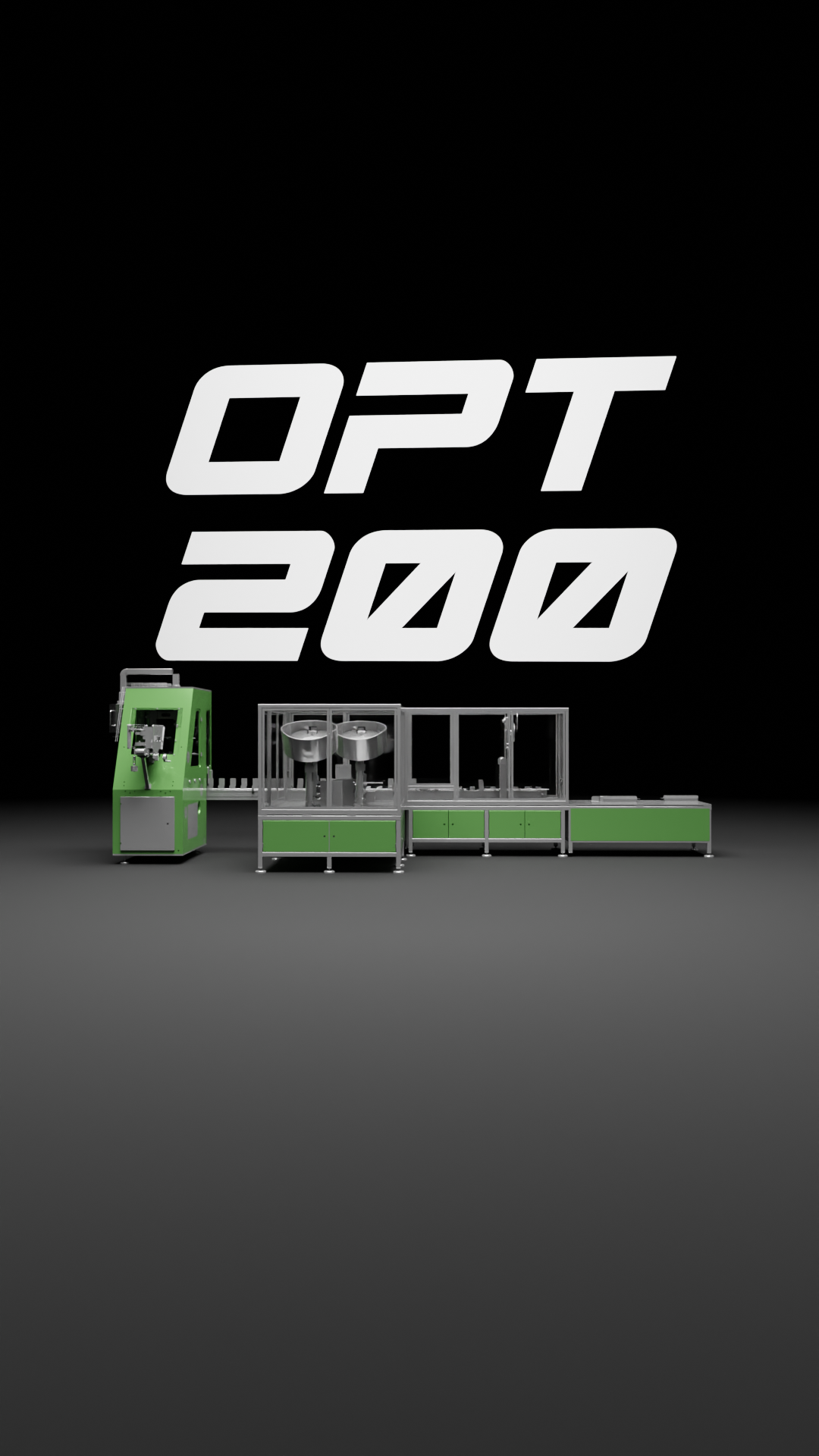

OPT 200

/

Automatic Packaging Machine

The cartridges are fed by a rotating tray system and placed sequentially on the conveyor belt. It is carried to the front of the 2-Axis robot with a conveyor. Thanks to the box machine at the beginning of the line, the shaped boxes are brought to the robot’s movement area with the help of a conveyor. Thanks to double feeding cartridges and Robot arms, the box is filled in a speedy manner. Closing operations are performed on the conveyor belt as the boxes move along. At the next station, box weight measurement is made and boxes that do not match the criteria are discharged out of the system.

MACHINE LAYOUT PLAN

TECHNICAL SPECIFICATIONS

Product

Cartridge

Capacity

Min. 10 Boxes / min

Avg. Electricty Consumption

12 kW

Compressed Air Consumption

4 - 7 Bar maks 8 dm³(Nl) / Minute (Free from Oil and Dust)

Noise Level

Maximum 85 decibels (according to ISO EN 11688-1)

Output Product Formats

5,56 - 7,62 mm Packaged Cartridge Box

Facility Field Conditions

Dust Free And Maximum 70% Relative Humidity

Labor Requirement

1 Operator / Shift

Feeding System

Rotary Tray Sorter System

Installed Electrical Power

20 kW
