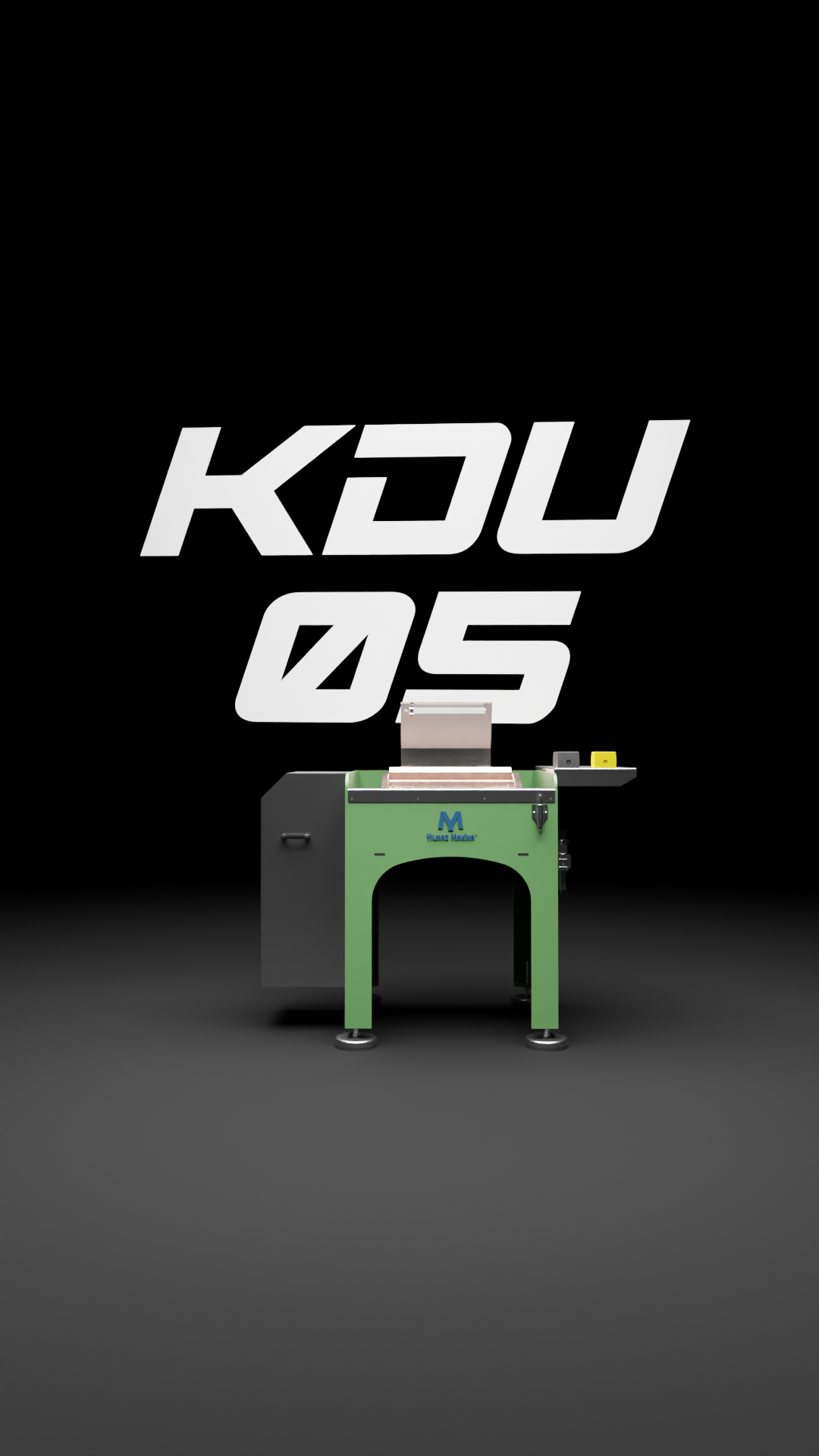

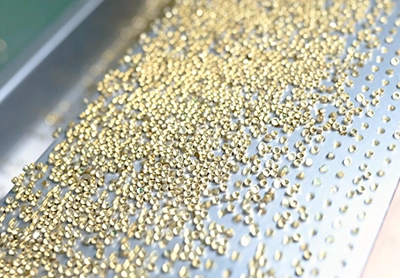

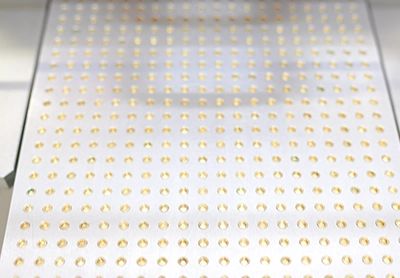

This station is used, used for an easy arrangement of the cups and anvils on the trays in order to be processed in the machines, works with the “vibrating arranging” logic, and the vibration movement is provided by an Ex-proof motor-reductor.
MACHINE LAYOUT PLAN
TECHNICAL SPECIFICATIONS
Product
Primer Cup
Avg. Electricty Consumption
0,5 kW
Installed Electrical Power
0,75 kW
Output Product Formats
5,56 - 7,62 - 9x19 mm Primer Cup
Noise Level
85 decibels maximum (ISO EN 11688-1)
Facility Field Conditions
Dust-Free Environment and Maximum 40% Relative Humidity at 20-26 °C
